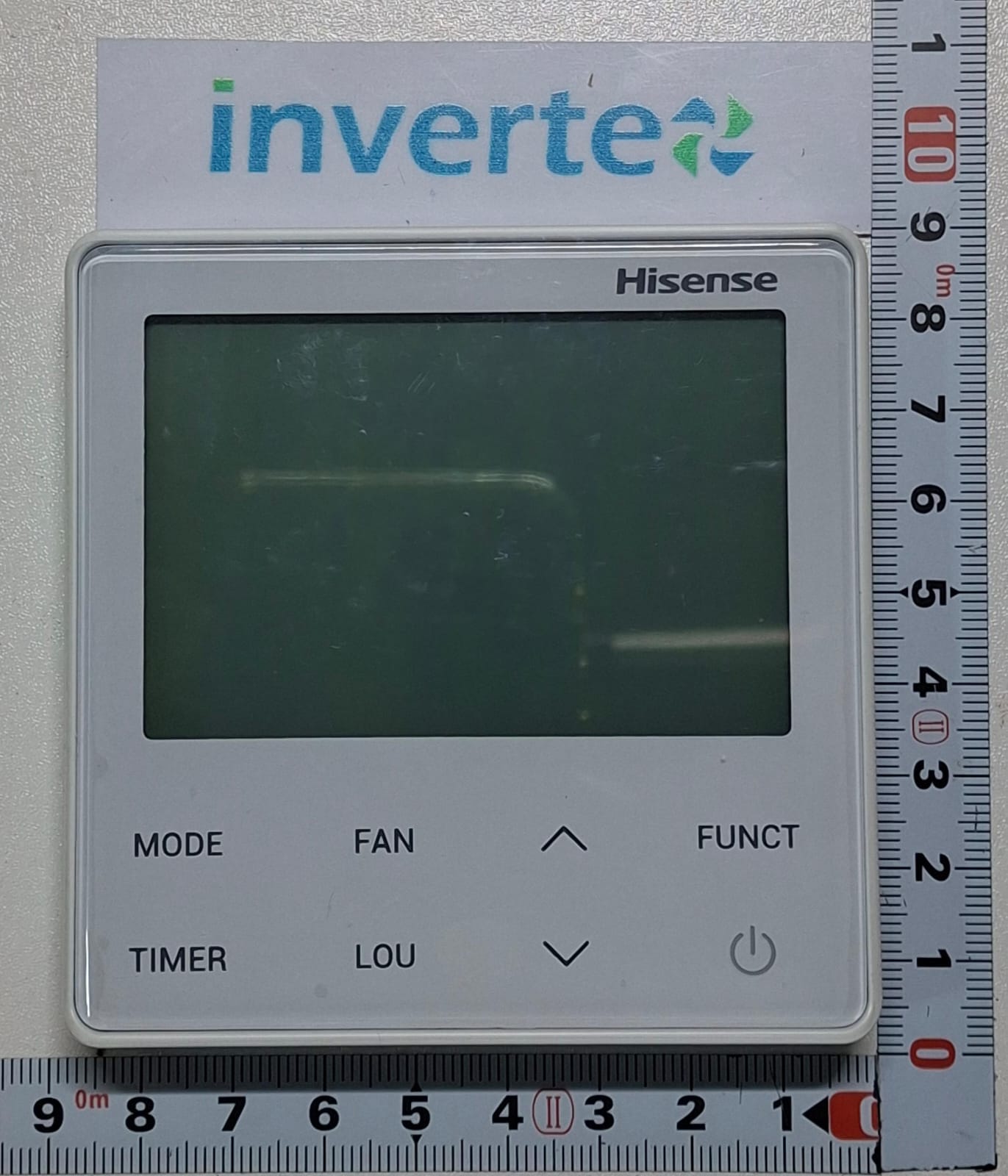

Hisense Thermostat Controller YXE-E01U(E)

YXE-E01U(E) is a wired soft-touch wall controller made by Hisense for their residential, LCAC (light commercial air conditioning), and VRF air conditioning systems.
Key Specifications:
• Dimensions: 86 × 86 × 14–15 mm,
• Display: Backlit LCD screen with a soft-touch button keypad,
• Power Supply: DC 12V ,
• Maximum Communication Distance: 40 meters (indoor unit to the controller),
• Temperature Setting Range: 16℃ to 30℃,
Features:
• Design: Compact white plastic housing built for surface mounting (requires a standard recessed junction/wall box).
• Control Functions: Provides precise temperature adjustments, mode settings (including dry/humidity control display), and independent airflow management.
• Infrared Receiver: Features a built-in IR receiver enabling compatibility with auxiliary infrared transmitters.
